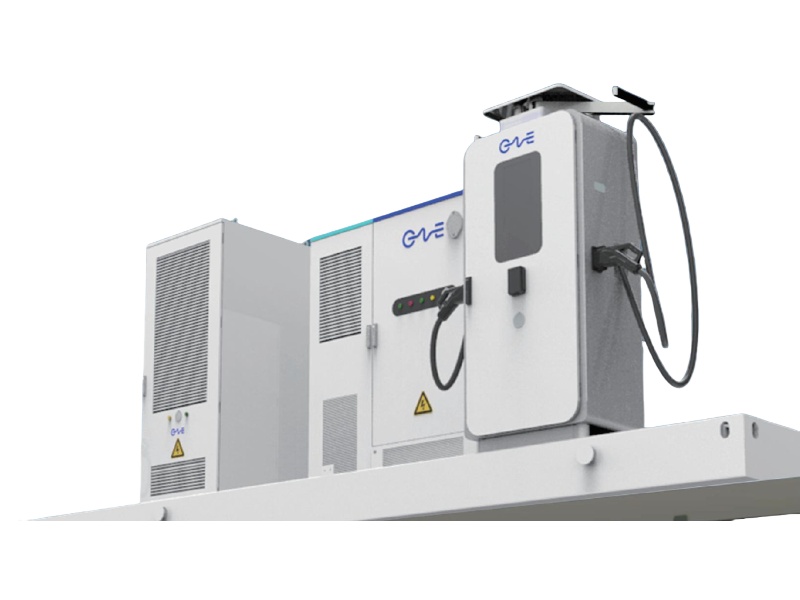

The Nimbus Mobile Charging Station is an all-in-one, rapidly deployable DC fast-charging solution designed for flexibility and high performance. It integrates a high-capacity LFP battery system (186kWh) with up to four 180kW DC fast chargers, enabling efficient and scalable electric vehicle (EV) charging. The station features a palletized, plug-and-play design, allowing for quick setup and instant operation without mechanical installation. With advanced liquid cooling, robust safety certifications, and multiple payment options (RFID, credit card, scan code), it is ideal for temporary or permanent charging needs in diverse environments.
High-Capacity Battery System
186kWh LFP battery (280Ah, 582.4~748.8Vdc) with 0.5P rate and liquid cooling for optimal performance.
IP65-rated battery compartment, ensuring durability in harsh conditions.
Ultra-Fast Charging
Four 180kW DC fast chargers (250A max current, 200~1000Vdc range) for rapid EV charging.
Peak efficiency of 98% with PCS (100kW/125kW AC power) supporting 400Vac grids (50/60Hz).
Rapid Deployment & Mobility
Pre-installed, palletized design for one-step setup—no mechanical assembly required.
Truck-transportable (1 station per truck) and site-independent, enabling flexible deployment.
Advanced Safety & Compliance
Multi-layer protection: Aerosol fire suppression, smoke/heat detectors, pressure relief valves, and optional flammable gas detectors.
Certified to international standards: IEC 62619, UN 3480, G99, CEI 0-21, and more.
User Convenience
Multiple payment methods: RFID, credit card, and scan code support.
Wide operating range: -20~50°C, 0~95% humidity, and up to 4000m altitude (with derating above 2000m).
